Data Center Construction Pulling Product Guide

Data center construction has become one of the largest sources of electrical and communications infrastructure work in the United States. The data center construction market is expected to reach $287+ billion by the end of 2026. Every new facility will require extensive electrical, fiber optic, communications, and utility infrastructure.

At Erin Rope Corporation, we manufacture and supply the rope, pull tape, cable, and hardware crews rely on to complete complex cable-pulling applications. In this guide, we’ll look at the products we carry for data center construction, where they fit into the installation process, and what to consider when selecting the right pulling product for the job.

Pulling Rope and Pull Tape: What’s the Difference?

Pulling rope and pull tape can both establish a pulling line, but they have different constructions and characteristics.

Pull tape is commonly used to install and maintain a pull line in conduit. Woven polyester tape offers high strength in a relatively flat, easy-to-handle format. Detectable pull tape incorporates a conductive element, allowing crews to locate the tape with compatible detection equipment.

Pulling rope is available in a range of constructions and materials, each with its own performance characteristics. Composite double-braid rope, for example, provides the strength and durability required for mechanical pulling applications. Other constructions can provide higher strength-to-weight ratios, lower stretch, or specific handling characteristics.

The product specification should follow the pull requirements rather than simply the size of the cable being installed. Contact our sales team to discuss your specific project requirements.

Pulling Products Used in Data Center Construction

Data center projects can involve large quantities of power and communications cable. Different construction phases may call for different pulling products, depending on the installation.

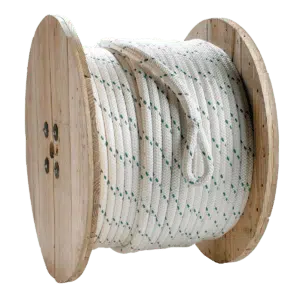

Composite Double-Braid Pulling Rope

Composite double-braid rope is designed for cable-pulling applications where strength, durability, and compatibility with pulling equipment are important.

Its construction combines a braided core and jacket to provide a strong pulling line that installation crews can handle and deploy. The appropriate diameter and construction depend on the pulling equipment and the maximum expected load.

For mechanical cable pulls, contractors should consider the rope’s tensile strength and working load alongside the capacity of the pulling equipment and other system components.

Woven Polyester Pulling Tape

Woven polyester pulling tape provides a strong, flexible pull line for conduit and cable installation.

Its flat construction makes it easy to handle and useful for establishing pull lines through conduit. Polyester also resists abrasion and common jobsite conditions.

Pull tape is available in different widths and tensile strengths, so the correct specification depends on the application.

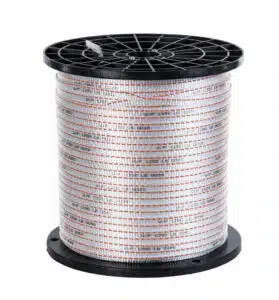

Detectable Pulling Tape

Detectable pulling tape adds a locating capability to the standard function of a pull tape.

A conductive element in the tape lets crews locate it with appropriate detection equipment. This can be useful in installations where conduit or pathways are difficult to access or where multiple runs make identification important. For large facilities with extensive conduit systems, knowing where a pull line is located can save time during installation and future work.

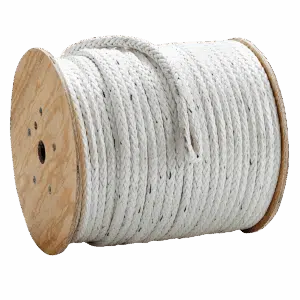

E/R 12 Slick Rope ®

Some complex cable-pulling applications call for a high-strength rope with minimal weight. E/R 12 Slick Rope® is designed for those exact situations.

Made with UHMWPE, the rope provides a high strength-to-weight ratio, low stretch, and a smooth surface. This combination is useful when crews need substantial pulling strength without adding unnecessary weight to the pulling system. As with any pulling rope, the application determines the appropriate size and specification.

What to Consider When Selecting a Pulling Rope

Consider these specifications before choosing a pulling product for a data center project.

• Tensile strength: Determine the maximum pulling force expected during the installation and select a product with an appropriate rated capacity.
• Rope construction: Different constructions provide different combinations of strength, stretch, abrasion resistance, and handling characteristics.
• Cable and load: Cable weight, diameter, bundle size, and configuration all affect the demands placed on the pulling line.
• Pulling distance and pathway: Long pulls and pathways with multiple bends can increase pulling forces.
• Pulling equipment: The rope needs to work with the cable puller and other components being used on the job.
• Handling and deployment: Large projects may require significant lengths of pulling rope or tape. The product should be practical for the crew to deploy, manage, and store.

Discuss these details with our team before you complete an order. Choosing a product based only on diameter or general strength can mismatch the rope with the demands of the installation.

Data Center Projects Move Quickly. Your Rope Supplier Should, Too.

The construction schedule for a data center leaves little room for waiting on routine materials.

A contractor may have a crew scheduled, pulling equipment on site, and cable ready to install. If the required pulling rope or tape sits in a warehouse across the ocean, the installation can stop while the project waits for material.

That’s where inventory and speed to jobsite set us apart.

Erin Rope maintains a large selection of rope, cordage, and pulling products in stock at our Blue Island, Illinois facility. In-stock products can ship the same day, giving contractors the materials they need to keep the work moving.

This is especially useful for data center construction, where projects often involve multiple phases and changing material requirements. A contractor may need one specification for an upcoming pull and a different product later in the project. Having a supplier like Erin Rope ensures you get the products you need when you need them.

Domestic Manufacturing and Custom Rope Capabilities

Stocked products can cover many cable-pulling applications at data centers, but some projects call for a specific construction, size, length, or configuration.

Erin Rope manufactures rope and cordage in the United States and can produce custom products for applications that require something outside our standard stocked offerings. This gives contractors and distributors two ways to work with Erin Rope: stocked products when you need them quickly and custom manufacturing when the application calls for a specific solution.

Our team can help review the pull requirements and identify a product that fits the application.

Keeping Data Center Cable Installation Moving

Data center construction requires a lot of cable, and installing that cable requires pulling products that can handle the job.

From woven polyester pull tape and detectable tape to composite double-braid rope and high-strength E/R 12 Slick Rope®, Erin Rope stocks a wide range of products for any cable installation applications.

With a large inventory, technical product knowledge, and same-day shipping on in-stock products, Erin Rope is positioned to support contractors and distributors working on the next generation of data center infrastructure.

Looking for pulling rope or pull tape for a data center project? Contact Erin Rope to discuss your project requirements and find the right products for the job.
