E/R 12 strand is manufactured from Ultra High Molecular Weight Polyethylene Fiber (UHMWPE)

Benefits

  • 2 1/2 times stronger than conventional pulling ropes
  • Low Stretch – Low Creep
  • 25% Reduction in Coefficient of Friction
  • 0% Water Absorption
  • Spliced Pulling Eyes

Specifications

Tensile Strength – 40,476 lb.

Elongation at Break – 3.5%

Specific Gravity – 0.96

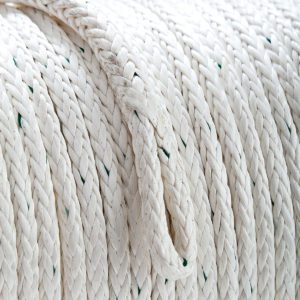

Erin Rope E-R 12 Strand Rope Close Up Erin Rope E-R 12 Strand Main Image 2 Erin Rope E-R 12 Strand Eye Splice Image

Erin Rope E-R 12 Strand Main Image

Slide table to view all columns

Part Number Nominal Diameter in. Length ft. Weight lbs.
ER12180300 9/16 300 26
ER12180600 9/16 600 52
ER12180900 9/16 900 77
ER12181200 9/16 1200 103
