3-In-One: Thread | Measure | Pull

In conduit installations, efficiency comes down to control. Crews need a pulling medium that threads cleanly, measures accurately, and performs under load without unnecessary stretch or friction.

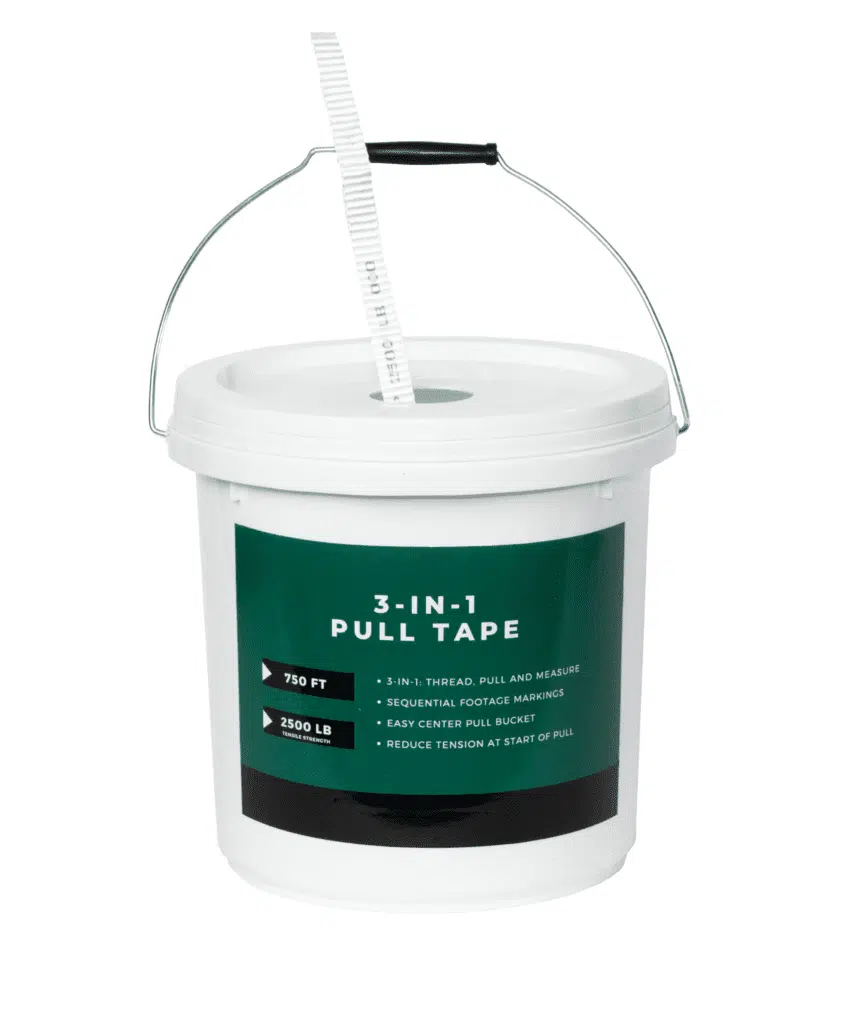

Often referred to in the field as mule tape, Erin Rope Corporation’s 3-in-1 Pull Tape is engineered to simplify cable installation by combining threading, measuring, and pulling into a single, high-performance product. Built from durable low-stretch polyester and pre-lubricated for smooth movement through conduit, it reduces installation time while improving safety and measurement accuracy.

In this guide, we’ll take a closer look at how 3-in-1 Pull Tape is constructed, how it compares to traditional pulling rope, and where it delivers measurable value in the field.

Durable Low-Stretch Polyester

The 3-in-1 Pull Tape is woven from high-strength polyester fibers chosen for their low elongation and abrasion resistance. Polyester is widely used in pulling applications because it maintains dimensional stability under tension while offering dependable tensile strength.

Low elongation is critical in conduit pulling. Excessive stretch can lead to unpredictable load behavior and increase the risk of snap-back if tension is released suddenly. By minimizing stretch under load, pull tape improves control and enhances worker safety during demanding pulls.

Flat Woven Profile for Controlled Pulling

Unlike round rope, pull tape features a flat woven construction. That profile distributes the load evenly and reduces pressure concentration inside the conduit.

In practical terms, this means:

• Improved control during long pulls
• Reduced twisting under tension
• More consistent tracking through conduit systems
• Better handling when feeding or retrieving tape

The flat design also provides a stable surface for integrated footage markings.

Integrated Measurement: Sequential Footage Markings

What distinguishes Erin Rope’s 3-in-1 Pull Tape is the integration of clear, sequential footage markings printed directly onto the tape. These markings eliminate the need for separate measuring devices. Installers can measure conduit runs as they thread the tape and confirm distances during the pull.

This built-in measurement capability supports:

• Accurate material planning
• Reduced waste
• Fewer installation errors
• Improved documentation on large projects

For contractors managing long conduit runs or multi-phase installations, that precision adds measurable value.

Pre-Lubricated to Reduce Friction

Friction is one of the primary challenges in cable installation. Resistance inside the conduit increases the strain on pulling equipment and can slow progress.

Each 3-in-1 Pull Tape is pre-lubricated to reduce surface friction, allowing it to move more smoothly through conduit systems. This helps:

• Lower pulling resistance
• Reduce strain on winches and equipment
• Minimize heat buildup
• Support smoother cable movement

In longer underground or multi-bend conduit runs, this friction reduction can significantly improve installation efficiency.

Available Tensile Strengths for Demanding Applications

Erin Rope’s 3-in-1 Pull Tape is available in multiple tensile strengths to accommodate a range of installation requirements, from standard conduit pulls to heavy-duty utility applications.

Because pull tape offers high strength with minimal elongation, crews can maintain greater control throughout the pull without excessive diameter or added bulk. Explore our other pull tape product here.

Pull Tape vs Traditional Pulling Rope

Both pull tape and pulling rope serve important roles in cable installation. However, pull tape offers distinct advantages in many conduit applications:

Improved Load Distribution
Flat woven construction reduces pressure points inside the conduit.

Integrated Measurement
Sequential footage eliminates the need for separate measuring tools.

Reduced Stretch
Low elongation improves control and minimizes the risk of snap-back.

Friction Management
Pre-lubrication enhances pull efficiency.

Traditional pulling rope remains valuable for certain overhead or rigging applications, but for conduit-based installations where measurement accuracy and friction control are most important, pull tape is often the preferred choice.

Performance That Reduces Total Installation Cost

Efficiency on the jobsite directly affects project cost. By combining threading, measuring, and pulling functions into one product, 3-in-1 Pull Tape helps crews:

• Reduce installation time
• Minimize material waste
• Improve measurement accuracy
• Enhance worker safety
• Lower labor and equipment strain

Over the course of a project, those advantages compound into measurable cost savings.

Why Industry Professionals Choose Erin Rope for Pulling Products

For over 25 years, Erin Rope Corporation has supplied high-quality, USA-made rope and pulling products to the construction and utility industries. Our inventory depth, same-day shipping capability, and commitment to consistent manufacturing standards ensure that contractors and distributors can rely on a reliable, quality product pipeline when timelines matter most.
