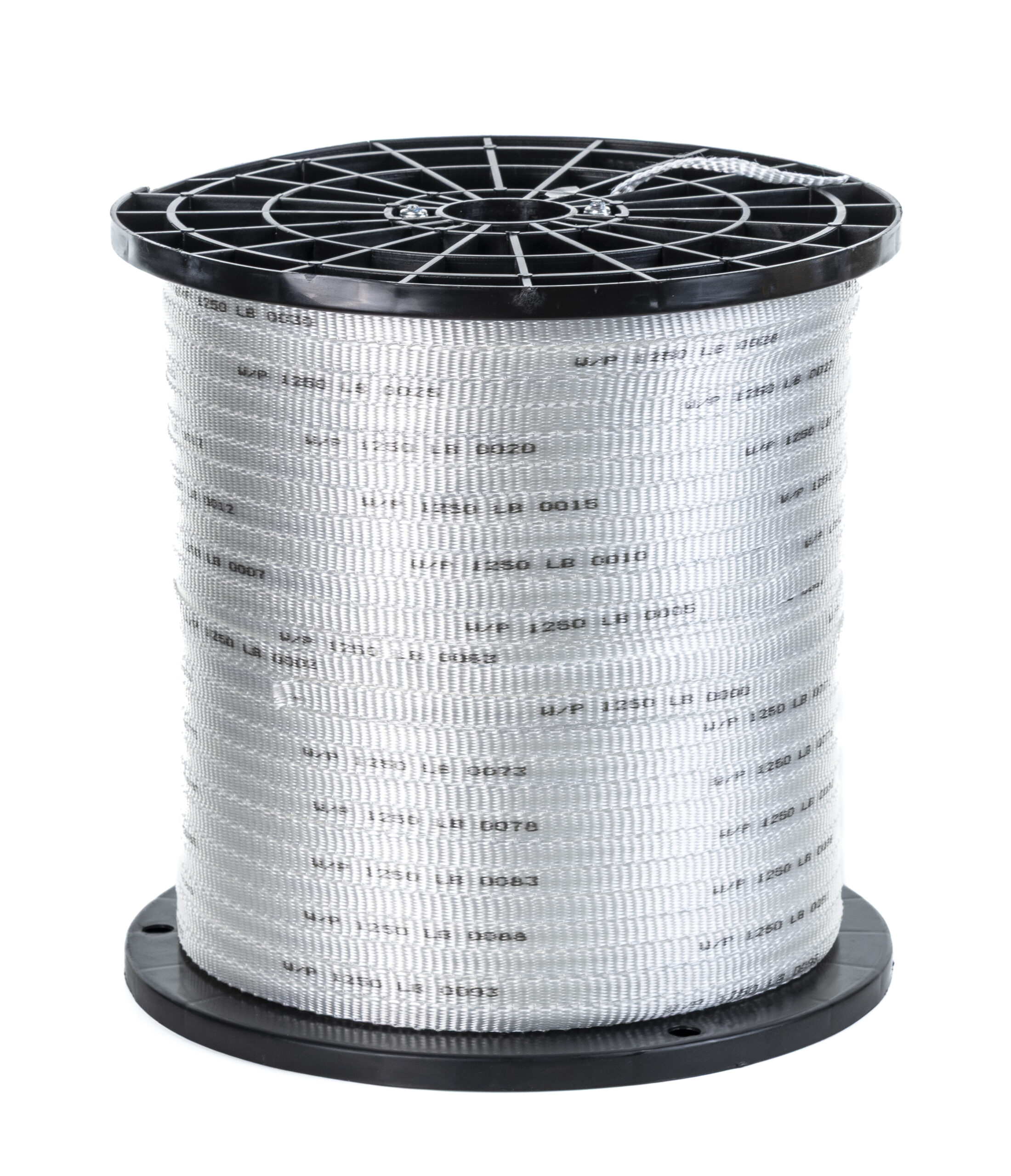

Woven Polyester Cable-Pulling Tape
- High Strength – Low Stretch Polyester Pulling Tape
- Accurate Sequential Footage Markings
- Low Elongation
- Proprietary Pre Lubrication to Reduce Coefficient of Friction
- Continuous Length Reels from 500 ft. – 100,000 ft.
- Packaged on Heavy Duty Black Plastic Reels
- Custom Continuous Length Reels Available
- High tensile strength, low stretch
- Printed sequential footage markings for accurate measurements
- Easily blown through conduits or ducts
- Available with or without detectable tracer wire
*Other tensile strengths & custom lengths available upon request
Click button to download the cut sheet automatically
| Part Number | Tensile Strength lbs. | Approximate Width in. | Length ft. | Maximum Reel Length ft. |
|---|---|---|---|---|
| WP12500500 | 1,250 | 1/2 | 500 | 100,000 |
| WP12501000 | 1,250 | 1/2 | 1,000 | 100,000 |
| WP12501500 | 1,250 | 1/2 | 1,500 | 100,000 |
| WP12503000 | 1,250 | 1/2 | 3,000 | 100,000 |
| WP12505000 | 1,250 | 1/2 | 5,000 | 100,000 |
| WP18000500 | 1,800 | 5/8 | 500 | 60,000 |
| WP18001000 | 1,800 | 5/8 | 1,000 | 60,000 |
| WP18001500 | 1,800 | 5/8 | 1,500 | 60,000 |
| WP18003000 | 1,800 | 5/8 | 3,000 | 60,000 |
| WP18050000 | 1,800 | 5/8 | 5,000 | 60,000 |
| WP25000500 | 2,500 | 3/4 | 500 | 45,000 |
| WP25001000 | 2,500 | 3/4 | 1,000 | 45,000 |
| WP25001500 | 2,500 | 3/4 | 1,500 | 45,000 |
| WP25003000 | 2,500 | 3/4 | 3,000 | 45,000 |
| WP25005000 | 2,500 | 3/4 | 5,000 | 45,000 |
